Moblie-Aloha家务机器人-8.Aloha手臂主从控制(ROS1)

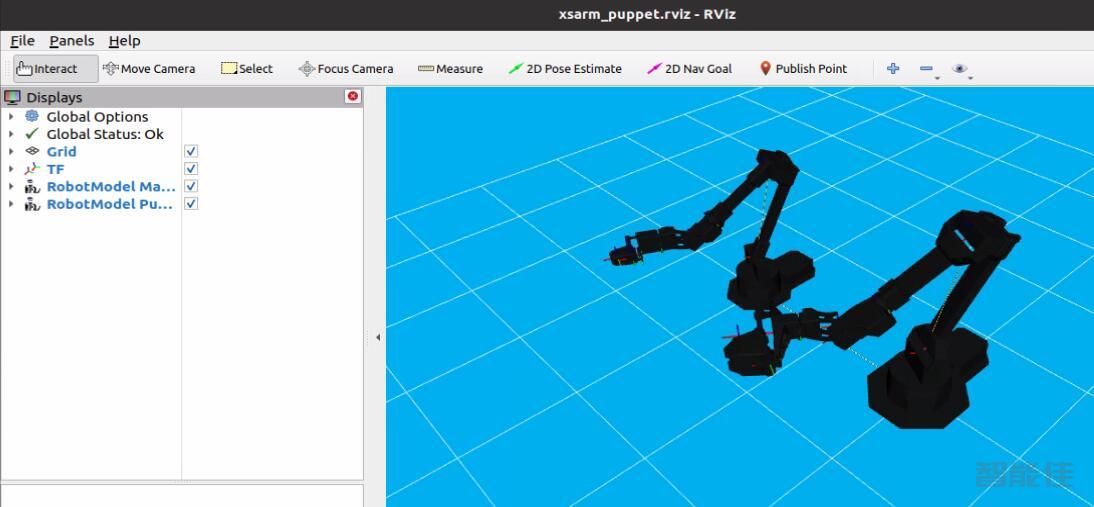

运行以下指令:
roslaunch interbotix_xsarm_puppet xsarm_puppet.launch robot_model_master:=wx250s robot_model_puppet:=vx300s use_sim:=true
cd ~/interbotix_ws/src/interbotix_ros_manipulators/interbotix_ros_xsarms/examples/python_demos
添加并修改bartender_master.py
bot = InterbotixManipulatorXS( robot_model='wx250s', robot_name = 'master', group_name='arm', gripper_name='gripper' )
具体代码如下,此处屏蔽了夹手动作:
from interbotix_xs_modules.arm import InterbotixManipulatorXS import numpy as np import sys # This script makes the end-effector perform pick, pour, and place tasks # Note that this script may not work for every arm as it was designed for the wx250 # Make sure to adjust commanded joint positions and poses as necessary # # To get started, open a terminal and type 'roslaunch interbotix_xsarm_control xsarm_control.launch robot_model:=wx250' # Then change to this directory and type 'python bartender.py # python3 bartender.py if using ROS Noetic' def main(): #bot = InterbotixManipulatorXS("wx250s", "arm", "gripper") bot = InterbotixManipulatorXS( robot_model='wx250s', robot_name = 'master', group_name='arm', gripper_name='gripper' ) if (bot.arm.group_info.num_joints < 5): print('This demo requires the robot to have at least 5 joints!') sys.exit() bot.arm.set_ee_pose_components(x=0.3, z=0.2) bot.arm.set_single_joint_position("waist", np.pi/2.0) #bot.gripper.open() bot.arm.set_ee_cartesian_trajectory(x=0.1, z=-0.16) #bot.gripper.close() bot.arm.set_ee_cartesian_trajectory(x=-0.1, z=0.16) bot.arm.set_single_joint_position("waist", -np.pi/2.0) bot.arm.set_ee_cartesian_trajectory(pitch=1.5) bot.arm.set_ee_cartesian_trajectory(pitch=-1.5) bot.arm.set_single_joint_position("waist", np.pi/2.0) bot.arm.set_ee_cartesian_trajectory(x=0.1, z=-0.16) #bot.gripper.open() bot.arm.set_ee_cartesian_trajectory(x=-0.1, z=0.16) bot.arm.go_to_home_pose() bot.arm.go_to_sleep_pose() if __name__=='__main__': main()
修改master_modes.yaml
port: /dev/ttyUSB0 groups: arm: operating_mode: position profile_type: time profile_velocity: 0 profile_acceleration: 0 torque_enable: true singles: gripper: operating_mode: pwm torque_enable: true
修改puppet_modes.yaml
port: /dev/ttyUSB1 groups: arm: operating_mode: position profile_type: time profile_velocity: 0 profile_acceleration: 0 torque_enable: true singles: gripper: operating_mode: pwm profile_type: time profile_velocity: 0 profile_acceleration: 0 torque_enable: true

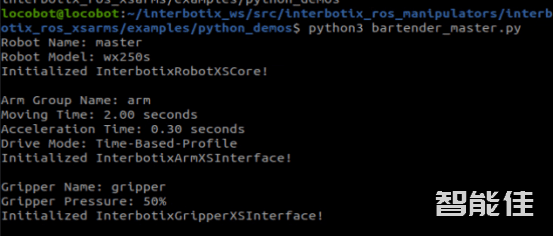

python3 bartender_master.py
以上操作均为仿真操作
实际测试:
警告:此操作的前提是机械臂运动空间没有限制,可以自由运动,安装在静态ALOHA2的机械臂,由于外框限制以及手臂限制,操作可能会引发干涉,谨慎使用!
新建aloha_master_puppet_test.py
from interbotix_xs_modules.arm import InterbotixManipulatorXS import numpy as np import sys # This script makes the end-effector perform pick, pour, and place tasks # Note that this script may not work for every arm as it was designed for the wx250 # Make sure to adjust commanded joint positions and poses as necessary # # To get started, open a terminal and type 'roslaunch interbotix_xsarm_control xsarm_control.launch robot_model:=wx250' # Then change to this directory and type 'python bartender.py # python3 bartender.py if using ROS Noetic' def main(): #bot = InterbotixManipulatorXS("wx250s", "arm", "gripper") bot = InterbotixManipulatorXS( robot_model='wx250s', robot_name = 'master', group_name='arm', gripper_name='gripper' ) if (bot.arm.group_info.num_joints < 5): print('This demo requires the robot to have at least 5 joints!') sys.exit() bot.arm.set_ee_pose_components(x=0.3, z=0.2) #bot.arm.set_single_joint_position("waist", np.pi/2.0) #bot.gripper.open() #bot.arm.set_ee_cartesian_trajectory(x=0.1, z=-0.16) #bot.gripper.close() #bot.arm.set_ee_cartesian_trajectory(x=-0.1, z=0.16) #bot.arm.set_single_joint_position("waist", -np.pi/2.0) #bot.arm.set_ee_cartesian_trajectory(pitch=1.5) #bot.arm.set_ee_cartesian_trajectory(pitch=-1.5) #bot.arm.set_single_joint_position("waist", np.pi/2.0) #bot.arm.set_ee_cartesian_trajectory(x=0.1, z=-0.16) #bot.gripper.open() bot.arm.set_ee_cartesian_trajectory(x=-0.1, z=0.16) bot.arm.go_to_home_pose() #bot.arm.go_to_sleep_pose() if __name__=='__main__': main()
测试
roslaunch interbotix_xsarm_puppet xsarm_puppet.launch robot_model_master:=wx250s robot_model_puppet:=vx300s
cd ~/interbotix_ws/src/interbotix_ros_manipulators/interbotix_ros_xsarms/examples/python_demos
python3 aloha_master_puppet_test.py
